true STRENGTh

Along side manufacturing SMI Tool & Die also has a fully equipped fabrication facility. Equipped for MIG (GMAW), TIG (GTAW), Spot Welding (RSW), Stick Welding (SMAW), Plasma Burning, Shearing, Breaking and Rotary Bending. This is an ability that allows us to always be prepared for any customer request and truly sets us apart from competitors.

Certifications

SMI Tool & Die provides certified welding complying to many certifications including MIL-STD-1595, MIL-STD-5021D, BAC 5975, KSC 0004, and ASME SEC IX. Our fabrication facility follows our manufacturing quality manual complying with MIL-STD-45662A quality control specifications.

EQUIPMENT

Our wide range of fabrication equipment allows quick turnover of any parts requiring weldments, bending or any standalone fabrication.

Featured

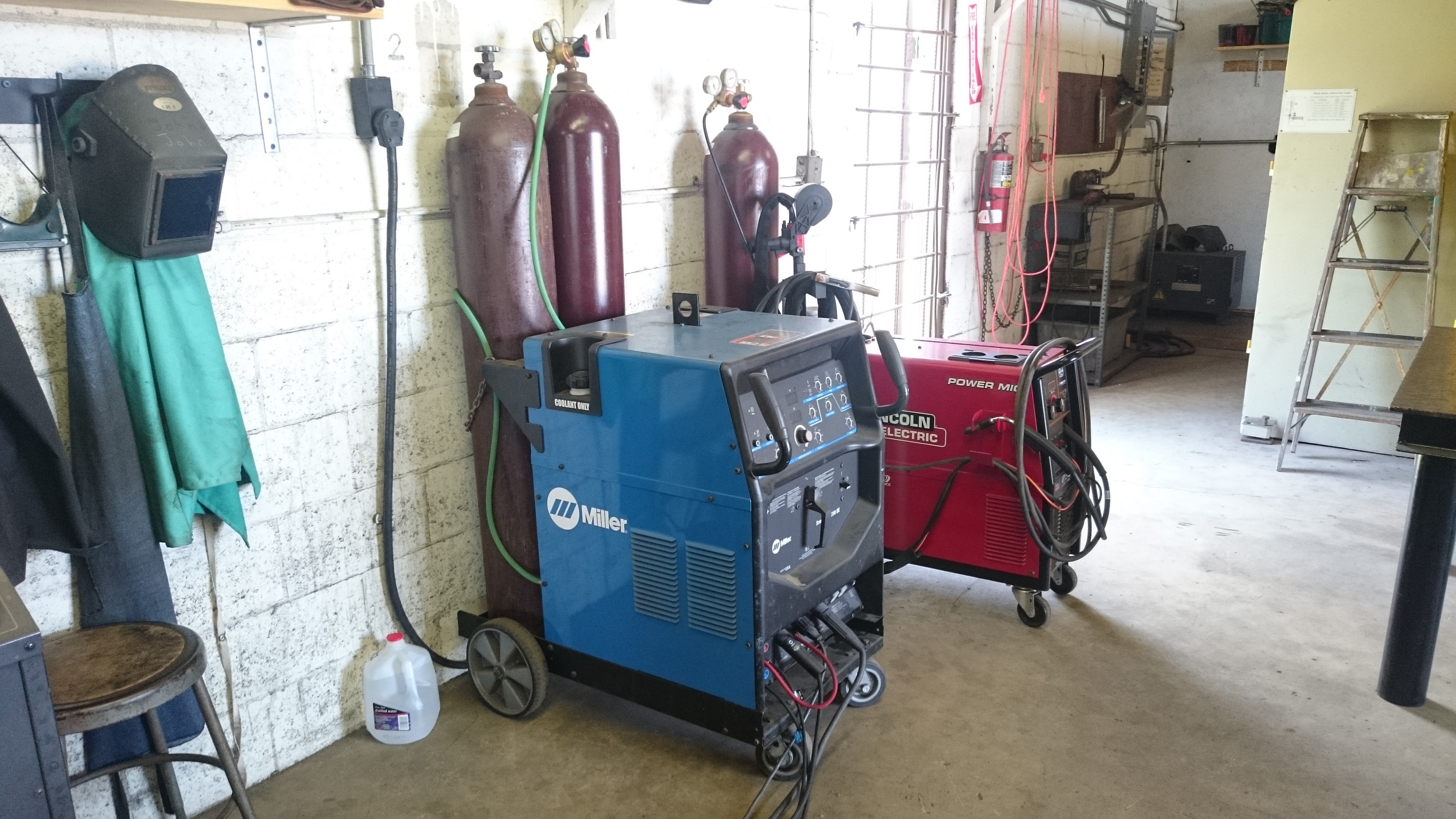

Miller Syncrowave 250 DX
Miller Syncrowave 250 DX

Processes: GTAW(AC and DC), GTAW-P, SMAW, CAC-A

Amperage: 3-310 Amps

Material Thickness: .012"-1/2" (Steel), .015"-3/8" (Aluminum)



Lincoln Power MIG 256
Lincoln Power MIG 256

Processes: GMAW(DC), SMAW (Stick)

Amperage: 30-300 Amps

Wire Feed: 50-700 IPM

Material Thickness: .03"-1/2" (Steel), .06"-1/2" (Aluminum)

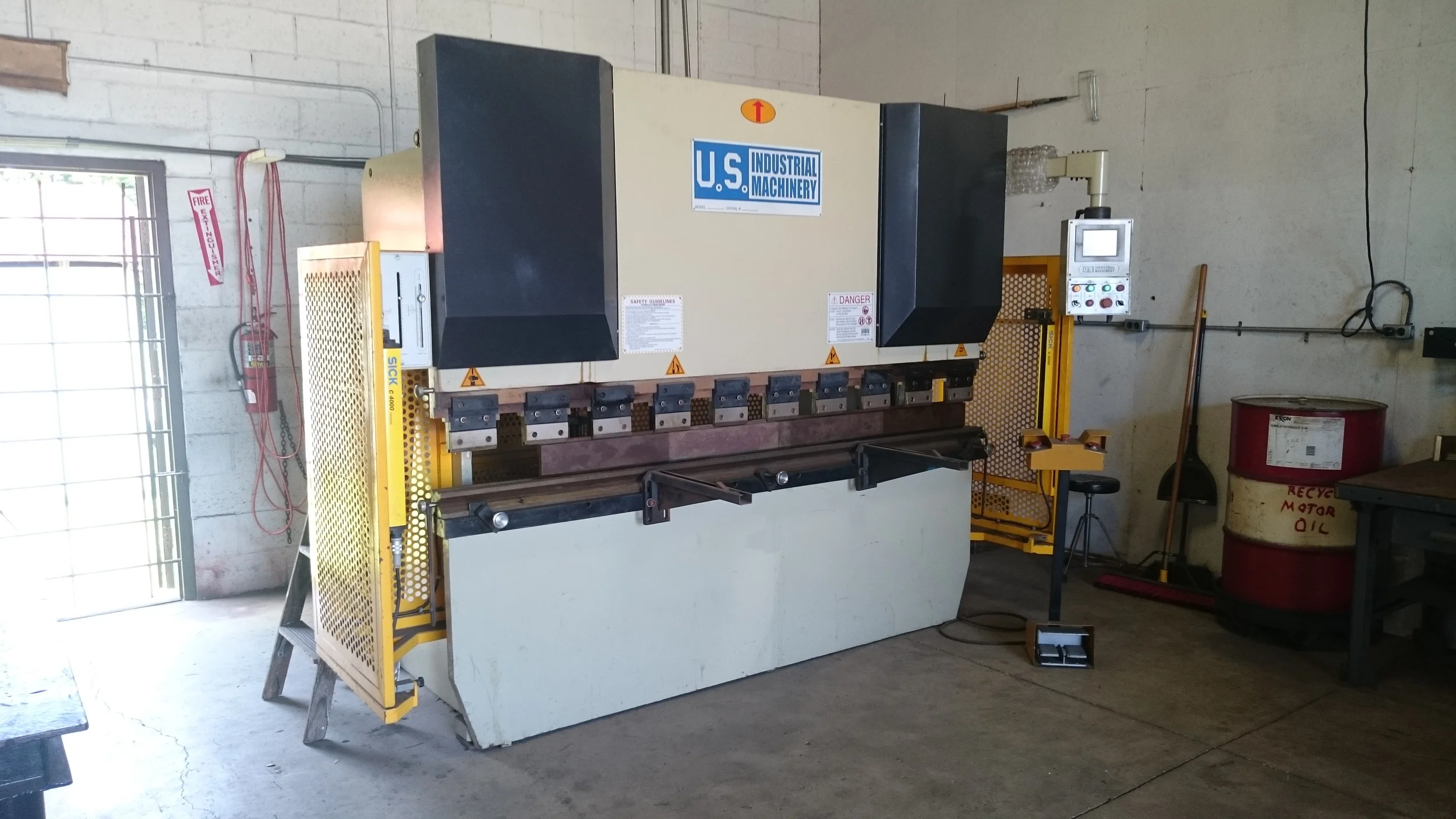

U.S. Industrial USHB88-8
U.S. Industrial USHB88-8

Working Pressure: 88 Tons

Length of Working Table: 98.4"

Distance Between Housings: 81.8"

Throat Depth: 9.8"

Ram Stroke Adjustment: 1.96"

Ram Travel Speed: 2.4 IPM

Ram Travel: 3.93"

Open Height: 13.7"

Backgauge Travel: 24"
